Baker Biovanguard Safety Cabinet

Energy-efficient, ergonomic and easy to clean safety cabinet

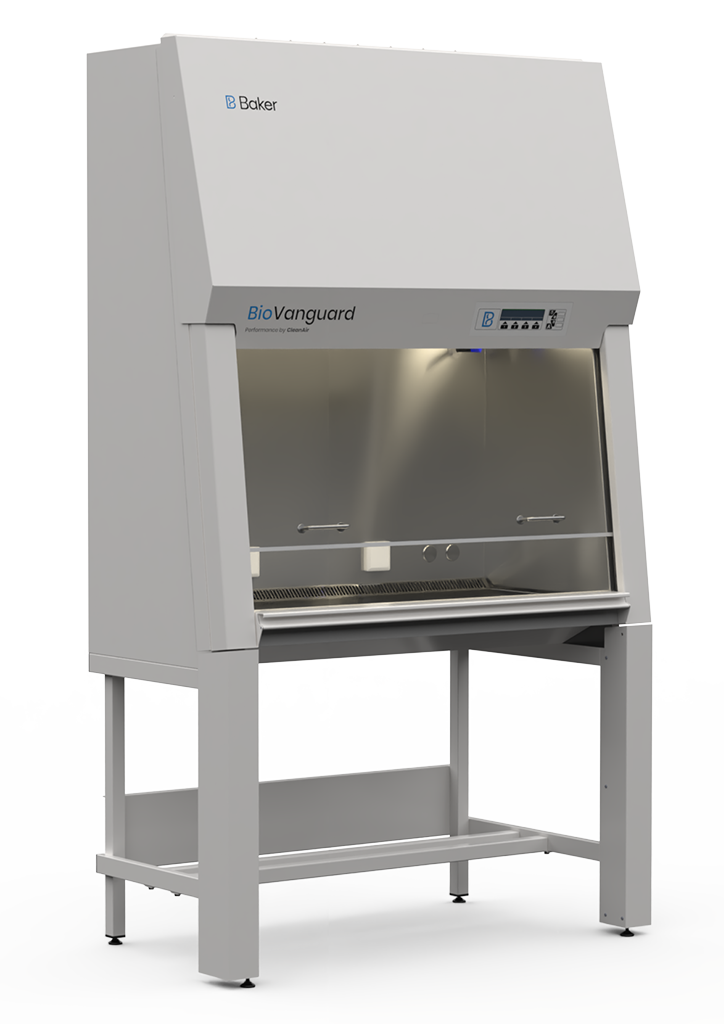

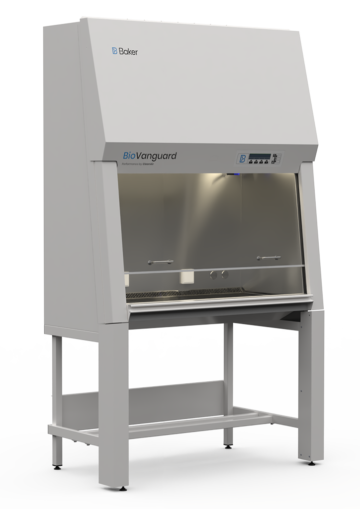

Baker BioVanguard – Class II Microbiological Safety Cabinet

The BioVanguard series from Baker consists of high-quality Class II biological safety cabinets, designed for microbiological research involving bacteria, viruses and allergens. The cabinets provide optimal protection for user, product and environment when working with agents at biosafety levels 1, 2 and 3 – and meet the highest requirements for biological safety, reliability and ergonomics.

Low Energy Consumption And Quiet Operation

Baker BioVanguard is equipped with efficient, energy-saving EC fans that keep energy consumption low. The well-considered design also ensures a low noise level, creating a comfortable working environment.

Ergonomic Design

7° angled front window in laminated safety glass for a comfortable working position, with predefined working, opening and closing positions
Epoxy-coated armrest in aluminium for ergonomic comfort – also functions as an airfoil for improved air intake and enhanced user protection
Ergonomic lighting positioned outside the work area – does not disturb airflow, create shadows or obstruct cleaning
Integrated footrest in the optional support frame
LCD control panel angled for easy viewing, displaying all relevant functions and alarms at a glance

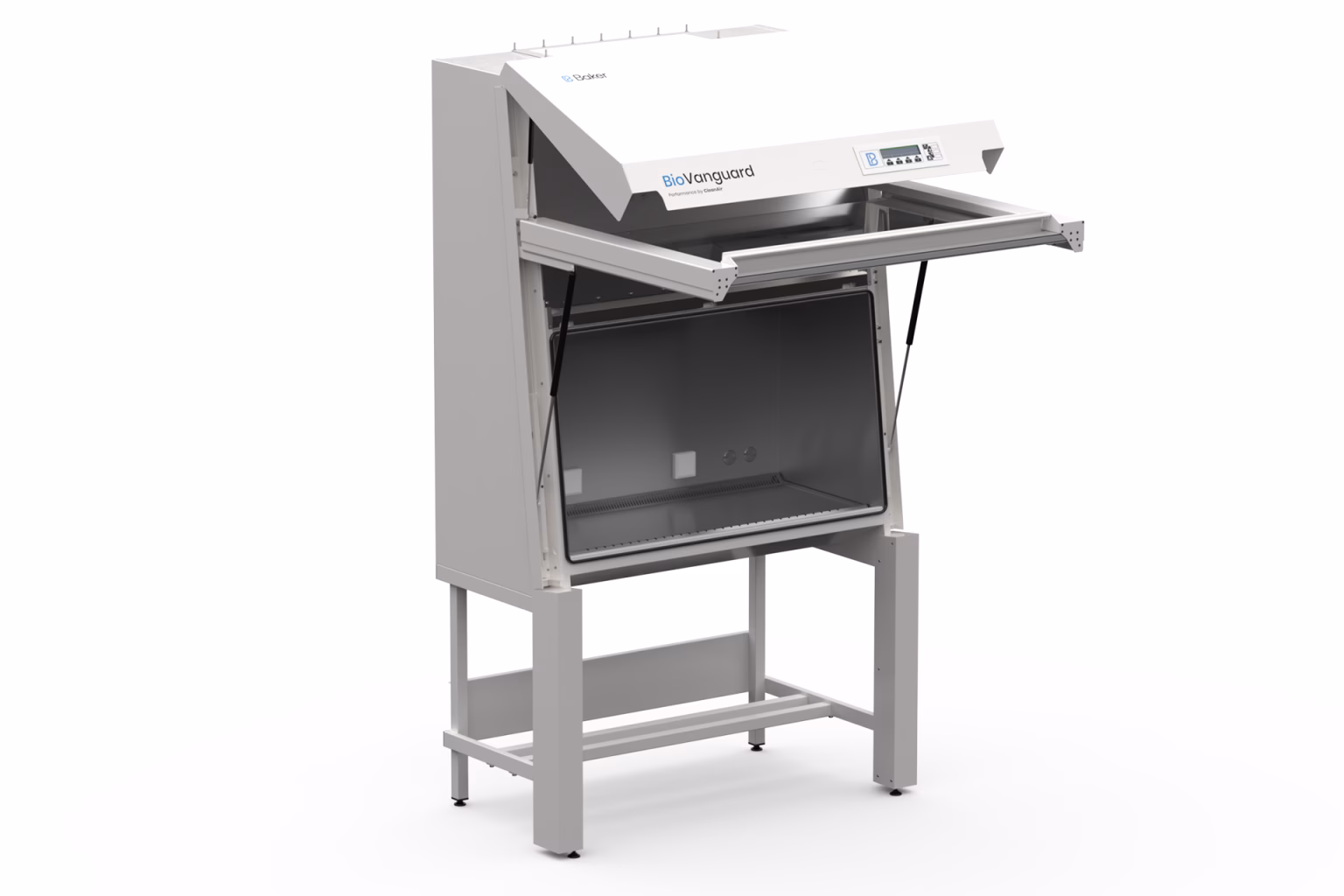

Advanced front window with sliding and hinge function – can be fully raised to open the entire work area for cleaning or loading large items
Seamless one-piece stainless steel work surface capable of collecting 2–3 litres of spilled liquids
Drip tray below the work surface collects up to 1.5 litres of spilled liquids per EN 12469, preventing liquid from reaching hard-to-clean areas

Advanced Safety Features

Exceeds EN 12469 standard – multi-shell construction where all contaminated areas are under or surrounded by negative pressure
V-shaped air slots in the work surface prevent airflow blockage and protect against contamination
Pre-filter prevents dust and particles from accumulating inside the cabinet, extending HEPA filter life and ensuring effective decontamination
Laminated safety glass in the front window (8 mm, 2 layers)
